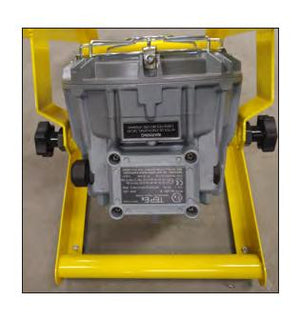

Explosion-proof LED projector 60 LED PR

Product Description

CONSTRUCTION

Housing: aluminium powder painted casting
Diffuser: borosilicate glass,
Accessories: protected galvanized steel gird
Gasket: silicon

Certificate: FIDI 19 ATEX 0030
Marking: 0722
Apparatus category: II 2G
II 2D

Marking of explosion protection: Ex db eb op is IIC T6/T5 Gb
Ex tb op is IIIC T80°C/T85°C Db

Ambient temperature: -40oC ≤ Tamb ≤ +40oC
Degree of protection: IP 66 category 1
Resistance to shock: IK 08
Protection class : I (protective earthing)
Rated voltage: 90 - 305 V AC
127 - 431 V DC
Frequency: 50Hz / 60Hz
Rated power: 60W
Luminous flux: 10 200 lm
Weight: 8,5 kg
Highest efficiency with luminous efficacy up to 170lm/W

- High color rendering index CRI 80
- Estimated service life 70 000 hours
- With OVP, OCP, OTP protection
- Autonomous reactivation after recovery
- Junction box, connection cable (20m, 50m), Ex socket/plug (on request)
