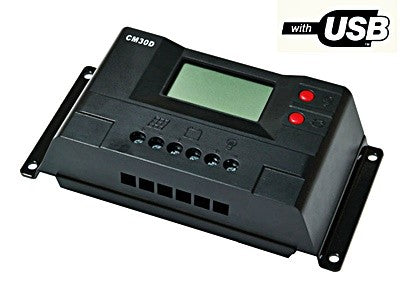

CM30D solar charge controller

Product Description
●Image of LCD graphic symbol
●Simple button operation
●Automatic Identification of System Voltage level
●Intelligent PWM charging mode
●Over current protection.
●Adjustable charge-discharge control parameters
●Settable Operating mode of Load
●Battery reverse-discharge protection
●Battery Low Voltage Disconnection (LVD)
●Battery reverse connection protection

mode
parameter
CM30D
CM30DU
         mode
parameter
CM30D
CM30DU
Rated Current
30A
USB output max

1A/5V
SystemVoltage
12V/24V auto
Charge/Discharge
Voltage Drop
<0.3V/<0.2V
solar panel
<50V
Float Voltage
13.8V/27.6V
Self-consumption
≤20mA
LVD
10.7V/21.4V
Installation cable area
≤7#  AWG  (≤16mm2)
LVR
12.6V/25.2V
Working Temperature
-20℃~50℃
Boost
 Voltage
b01 Sealed 14.4V/28.8V
Dura-tion 2hours
Storage temperature
-30℃~70℃
b02 GEL  14.2V/28.4V
Humidity
10%-90%, NC
b03Flooded14.6V/29.2V
Size
95mm×181 mm×42 mm
HVD
15.5V/31.0V
Mounting hole spacing
75 mm×171 mm -Φ5
HRD
15.0/30.0V
Weight
380g
